MAEDA Mini Cranes

CRAWLER CRANE

CC985S-2STAGEV

Crane capacity

4.9t x 2.1m

(10,800 lb x 7.0 ft)

Max. lifting height (on the ground)

16.50m

(53.6 ft)

20.2m with fly jib

(66.4 ft with fly jib)

Max. working radius

14.67m x 0.20t

(48.0 ft x 440 lb)

Max. lifting height (underground)

-25.0m (4 falls)

(-84.2 ft)

Pick & Carry Capacity

2,000kg

(4,400 lb)

CC985S-1 EU Stage III B
CC985S3-1 EU Stage III A CC985S-1 EU Stage III B
CC985S3-1 EU Stage III A

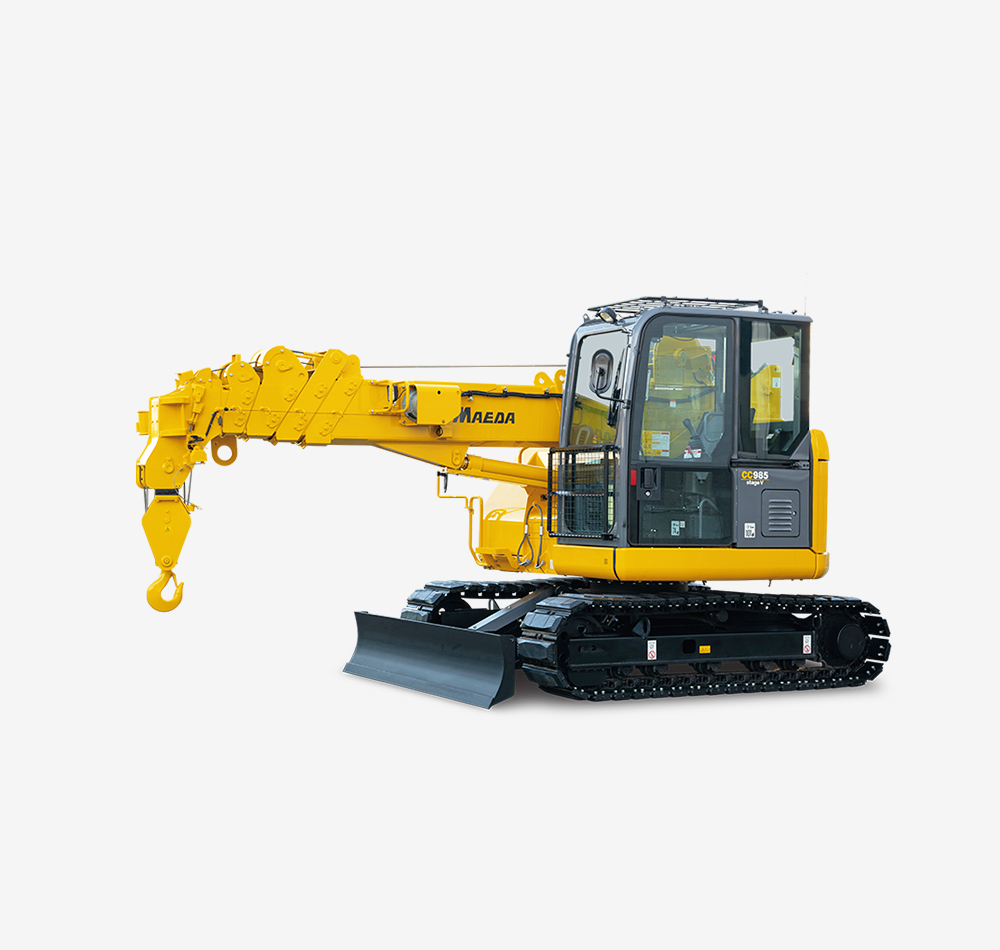

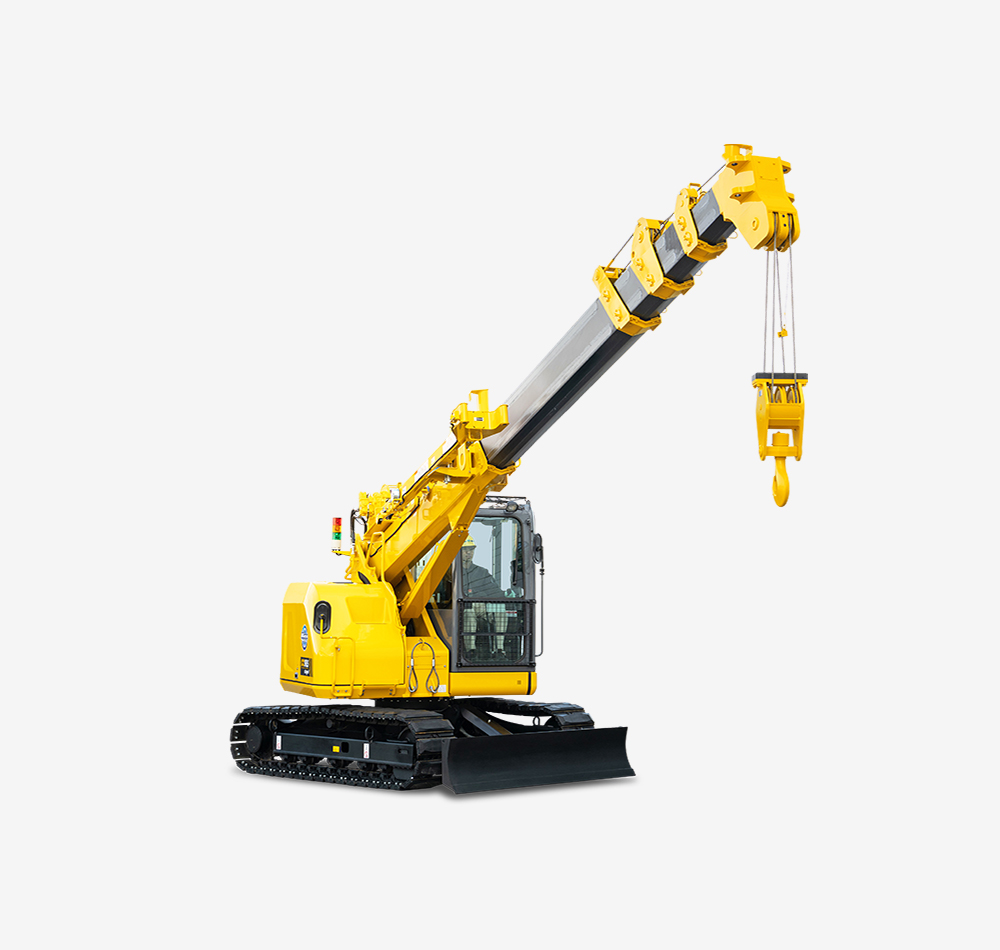

STYLE

OPTION

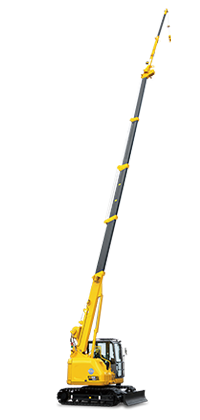

Fly Jib

  • Yes
  • No

TECHNICAL DATA

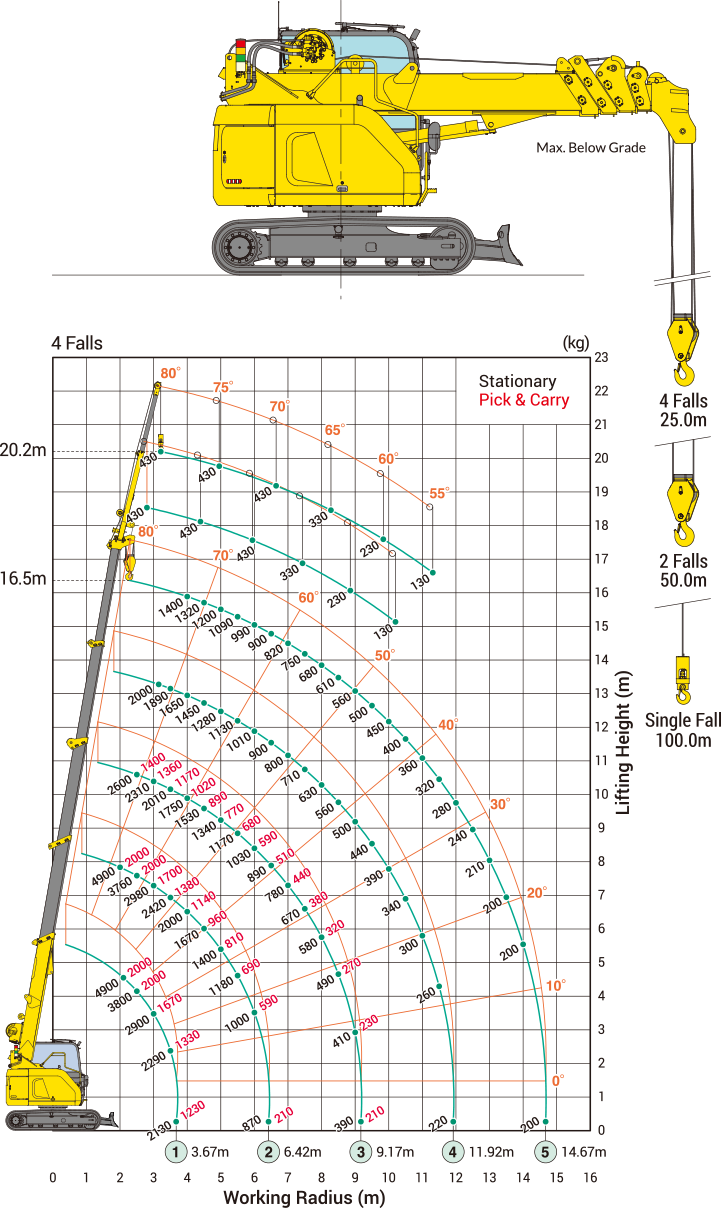

Working Range Chart

Specifications (CC985S-2)

Crane Capacity 4.9t x 2.1m
Max. Working Radius 14.67m x 0.20t
Max. Lifting Height 16.50m (20.2m with fly jib)
Max. Reach Below Ground -25.0m (4 falls)
Pick & Carry Capacity 2,000kg
Travel Speed 0-3.4km/h
Travel Ground Pressure (with rubber pads) 47.8kPa (0.49kgf/cm2) [50.6kPa (0.52kgf/cm2) w/blade & fly jib]
Engine ISUZU 4LE2XBJB / Diesel
Engine Rated Output 44.6kW/2000min-1 (60.6PS / 2000rpm)
Dimensions (with rubber pads) 5,220mm (L) x 2,320mm (W) x 2,760mm (H)
Tail swing 1,390mm
Machine Weight (with rubber pads) 9,790kg (10,190kg w/blade, 9,970kg w/fly jib, 10,370kg w/ blade & fly jib)

See Catalogue for CC985S-1 & CC985S3-1

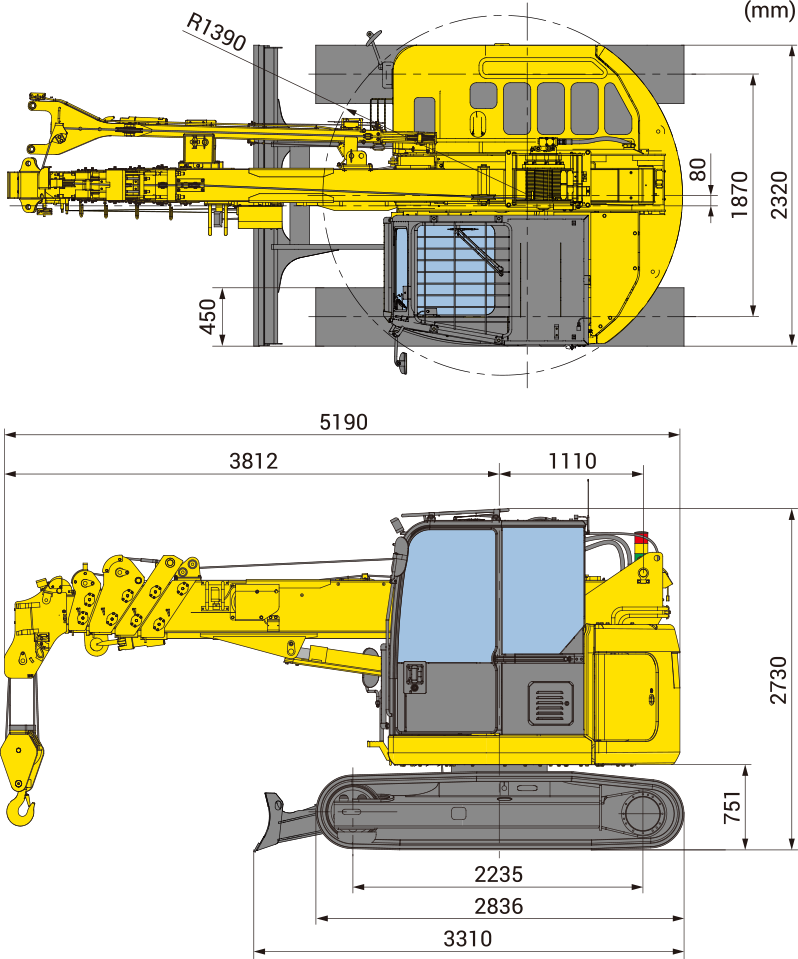

Dimensions

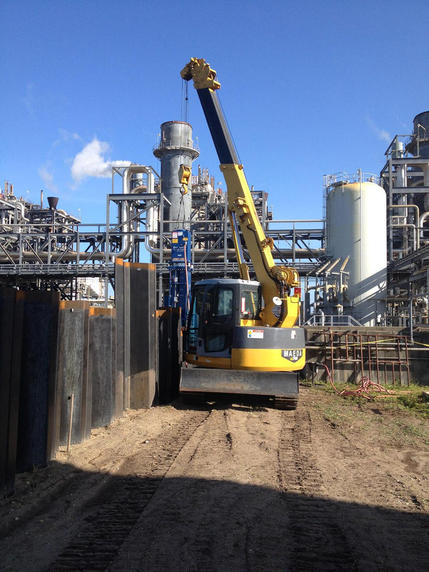

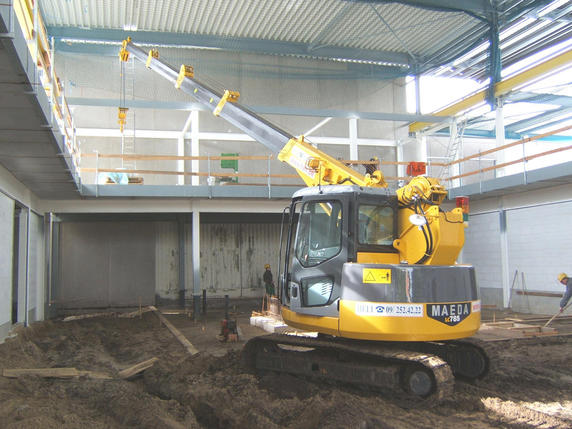

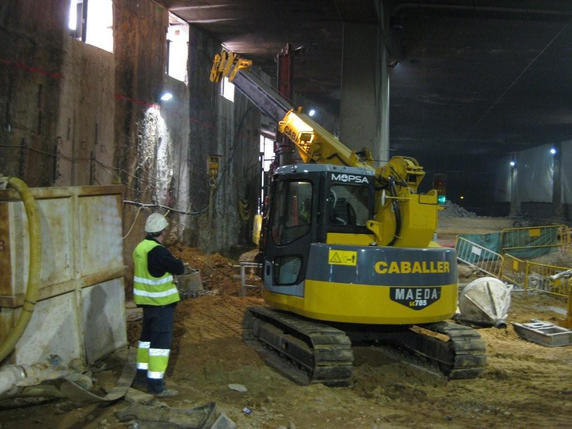

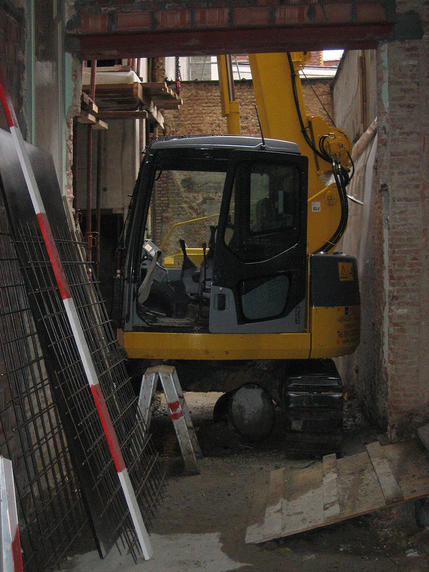

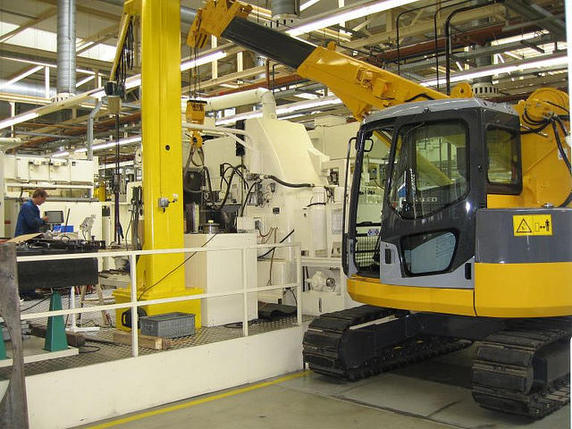

GALLERY

more

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

  • Wide View Roof Window (CC985S-2 only)
  • Travel 2 Speed Function
  • Winch 2 Speed Function
  • 4 fall / 2 fall Hook Block
  • Automatic Hook Stowage System
  • Level
  • Rear View Monitor
  • Programmable Moment Limiter / Diagnostic Display
  • Tilt Alarm
  • Working Status Lamp
  • Data Logger
  • Pick & Carry

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

  • Single Fall Hook
  • Searcher Hook (2.0t) + Single Fall Hook (1.5t)
  • Fly Jib
  • Black Rubber Pads
  • White Rubber Pads
  • Blade (CC985S-2 only)
  • Custom Paint Colours
