SPIDER CRANES

Light and compact body. Supportive outriggers mean
lifting can be carried out on any site.

MC104C

0.995t x 1.1m
(2,190lb x 3.5ft)

more

MC174C

1.72t x 1.0m
(3,790lb x 3.0ft)

more

MC285C-2

2.82t x 1.4m
(6,210 lb x 4.5ft)

more

MC305C-2

2.98t x 2.5m
(6,560 lb x 8.0ft)

more

MC405C

3.83t x 2.7m
(8,480 lb x 8.5ft)

more

MC815C

8.09t x 2.4m
(17,830lb x 7.5ft)
Coming Soon

more

COMPACT & POWERFUL

Compact Body

The 3 smaller models with a body width of only 590mm ~ 750mm can travel through a standard single door for indoor use.

Equipped with crawlers, travelling into confined area where bigger cranes or truck cranes cannot access is an easy job for the Maeda spider cranes.

Electric Motor

The optional electric motor ensures work can be carried out cleanly indoors without any concern for gas emissions.
*For models MC285C-2 and up

Light Weight

Compact and light weight, mini spider cranes can be lifted up to a site by larger cranes or service elevators, then often used for various construction works such as material handling and curtain wall lifting from inside buildings or on roof tops.

Outriggers

By stabilizing the body with its four outriggers, lifts of up to 8.0t can be carried out. Even on a site with obstacles or on steps, outriggers make stable lifting work possible.

Powerful
Operation

With up to 8.0t capacity, MC series are used for many different applications such as construction, civil engineering and heavy load installation works.

Durable Winch

Maeda’s winch uses a disk brake which is highly durable for continuous use. Operations can be carried out for a long period of time from roof tops or construction sites.
*For models MC285C-2 and up

SAFETY FIRST

Tipping
Prevention
System

To prevent tipping accidents caused by overloading the crane, our Moment Limiter System (Safe Load Indicator) is equipped as our top safety standard.

When the load reaches 90% of the rated total load, the crane starts a warning with rotary lamps and audible alarm.

When the load reaches 100%, the crane will automatically stop to prevent tipping. With a digital display, the operator can continuously check working status.

Working
Envelope Setting

The Moment Limiter (Safe Load Indicator) can set a lifting height limit, working radius limit, and angle limit.

Working range of the boom can be set as you wish, and the boom will automatically stop at the set point.

This function is very useful for narrow places with obstacles or limitations such as power plants and factories.

Interlock System

The Outrigger Interlock System restricts activation of the outriggers if the boom is not stowed and outriggers are not rotated to set position. It detects boom slew and derrick position, and outrigger rotation position.

The Crane Interlock System enables the crane to work if outriggers are grounded correctly. It detects outrigger rotatory position and grounding condition.

Crane Tilt Alarm

An alarm is issued in the event of the crane operating at over 3-degree inclination,
or over 15-degree inclination when travelling.

USABILITY

Remote Control

Accurate positioning of the load is possible with a single crane operative using the Remote Control.

The Remote Control is equipped with a micro-speed mode for precision work. There is also a function that allows the user to set speed.

The operator can confirm actual load and RTL (rated total load) using the LCD monitor during operation.
*For models MC285C-2 and up

Searcher Hook
and Fly Jib

By using the optional searcher hook, the highest reach of the crane can be achieved even in places with height limitations due to ceilings or under the roof eaves. This is very often used for glazing works.

Also an optional fly jib mounted at the tip of the boom can create further lifting height.

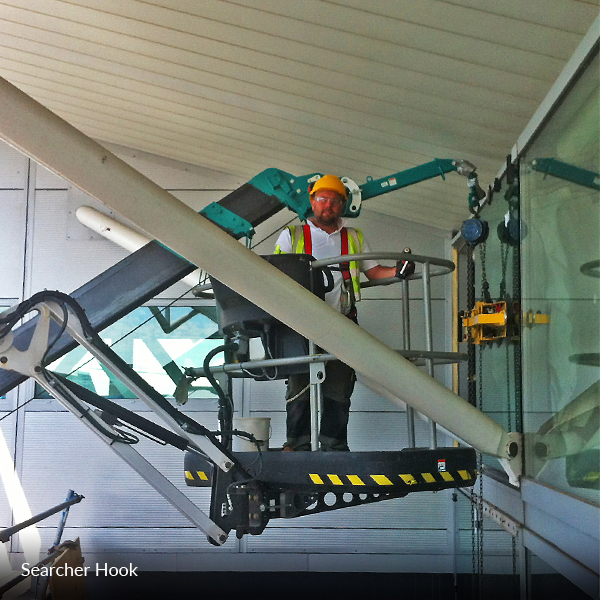

Searcher Hook


Fly Jib
