CRAWLER CRANE

CC1485S-2STAGEV

Crane capacity

6.0t x 2.6m

(13,220 lb x 8.5 ft)

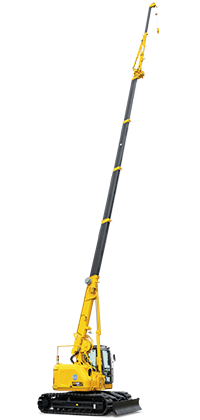

Max. lifting height (on the ground)

16.7m

(55.0 ft)

22.0m with fly jib

(72.2 ft with fly jib)

Max. working radius

16.1m x 0.43t

(53.0 ft x 920 lb)

Max. lifting height (underground)

-24.5m (4 falls)

(-80.3 ft)

Pick & Carry Capacity

2,000kg

(4,400 lb)

Working Range Chart

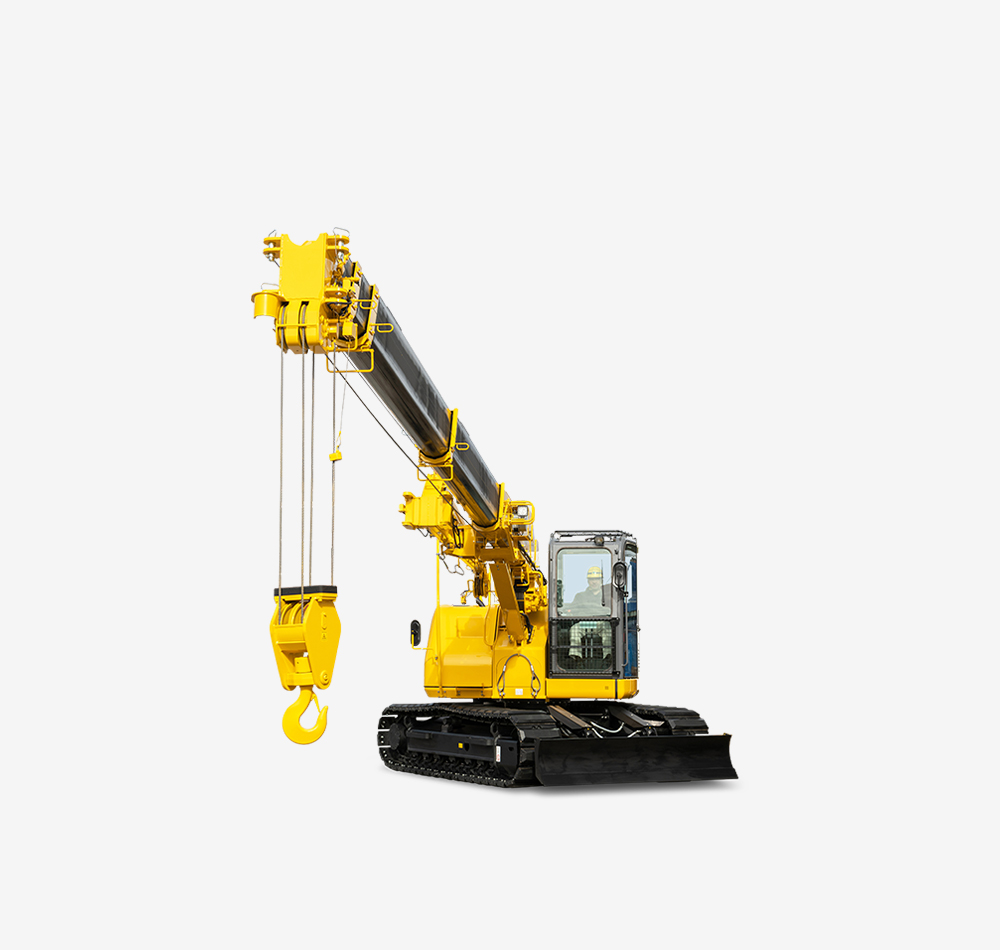

Specifications (CC1485S-2)

Crane Capacity	6.0t x 2.6m
Max. Working Radius	16.1m
Max. Lifting Height	16.7m (22.0m with fly jib)
Max. Reach Below Ground	-24.5m (4 falls)
Pick & Carry Capacity	2,000kg
Travel Speed	0-3.1km/h
Travel Ground Pressure (with rubber pads)	51.2kPa (0.52kgf/cm²) [54.5kPa (0.56kgf/cm²) w/blade & fly jib]
Engine	ISUZU 4LE2XBJB / Diesel
Engine Rated Output	44.6kW/2000min^-1 (60.6PS / 2000rpm)
Dimensions (with rubber pads)	6,610mm (L) x 2,490mm (W) x 2,910mm (H)
Tail swing	1,550mm
Machine Weight (with rubber pads)	15,030kg (15,710kg w/blade, 15,330kg w/fly jib, 16,010kg w/ blade & fly jib)

Dimensions

Working Range Chart

Specifications

Crane Capacity	13,220lb x 8.5'
Max. Working Radius	53'
Max. Lifting Height	55' (72.2' with fly jib)
Max. Reach Below Ground	-80.3' (4 parts of line)
Pick & Carry Capacity	4,400lb
Travel Speed	0-1.99mph
Travel Ground Pressure	7.11PSI
Travel Ground Pressure (with fly jib)	7.26PSI
Engine	ISUZU 4LE2XDPC / Diesel
Engine Rated Output	54.04hp (40.3kw)/2000rpm
Dimensions	21'6"(L) x 8'2"(W) x 9'5"(H)
Tail Swing	5'1"
Machine Weight	31,752lb (32,413lb with fly jib) (Rubber Pads: +1,036lb)
