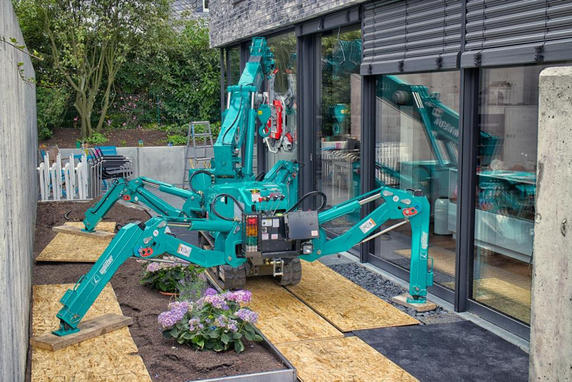

STYLE
TECHNICAL DATA

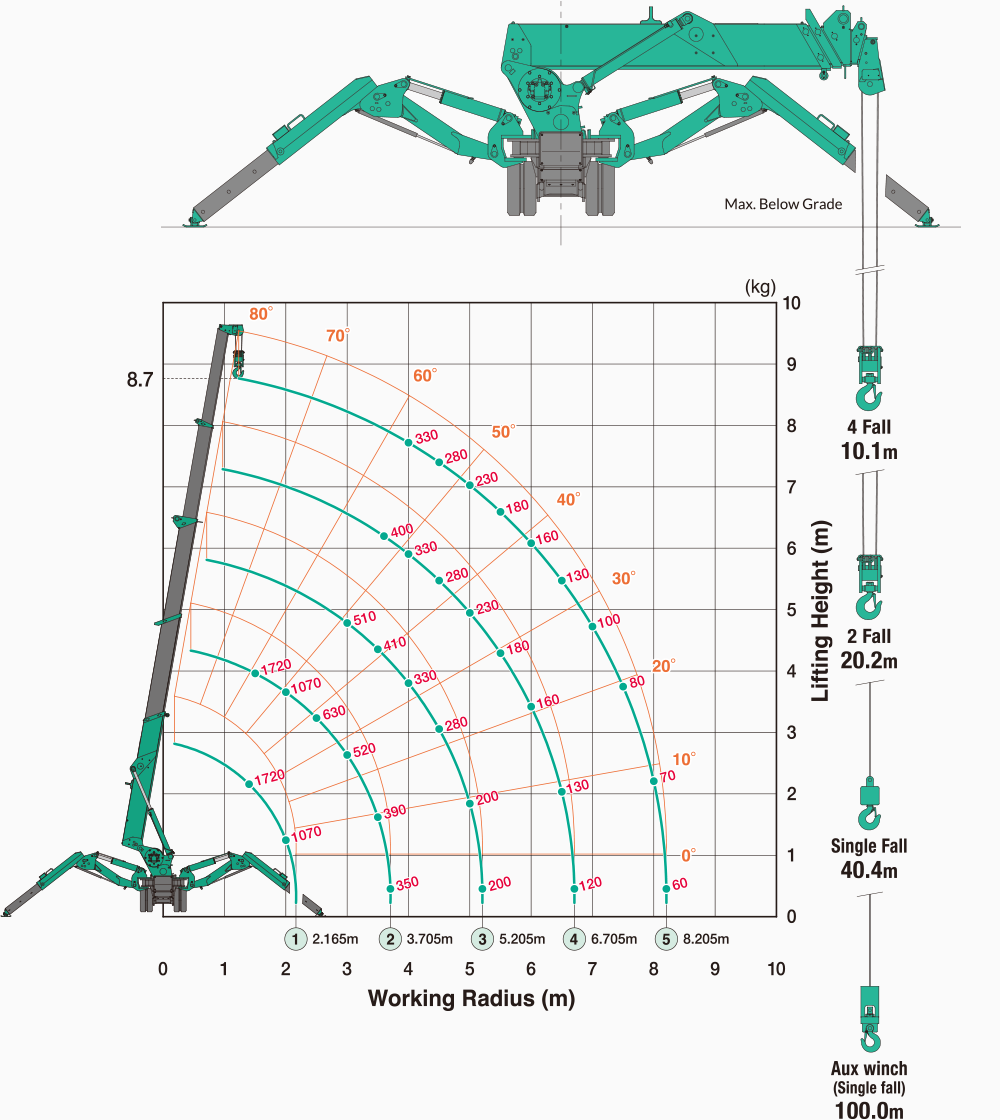

Working Range Chart
Outriggers Position : Max
Outriggers Position : Other than Max
850kg Searcher Hook Offset Position
SH1 (Outriggers Position : Max)
850kg Searcher Hook Offset Position
SH2 (Outriggers Position : Max)
850kg Searcher Hook Offset Position
SH3 (Outriggers Position : Max)
Specifications
| Crane Capacity | 2.82t x 1.4m |
|---|---|
| Max. Working Radius | 8.205m x 0.15t |
| Max.Lifting Height | 8.7m |
| Max. Reach Below Ground | -10.1m (4 falls) |
| Max. Reach Below Ground (Aux Winch) | -100m (single fall) |
| Outrigger Max.Extended Width | （Lateral）4,782mm x （Front）4,718mm x （Rear）3,990mm |
| Travel Speed | 0-2.2km/h |
| Travel Ground Pressure (MC285CWM-3) | 50.0kpa (0.510kgf/c㎡) |
| Travel Ground Pressure (MC285CWME-3) | 54.3kpa (0.554kgf/c㎡) |
| Engine | YANMAR 2TNV70-NMBA / Diesel |
| Engine Rated Output | 7.4kw/2,500rpm |
| Engine (*MC285CGRM-2) | Briggs & Stratton 3564 / Petrol |
| Engine Rated Output (*MC285CGRM-2) | 10.8kw/2,600rpm |
| Electric Motor | 5.5kw, 4P 380V |
| Dimensions (MC285CWM-3) | 2,800mm (L) x 750mm (W) x 1,470mm (H) |
| Dimensions (MC285CWME-3) | 3,285mm (L) x 750mm (W) x 1,470mm (H) |
| Machine Weight (MC285CWM-3) | 1,990kg |
| Machine Weight (MC285CWME-3) | 2,160kg |
*Gasoline engine model is only available as MC285CGRM-2.
Dimensions
Working Range Chart
Outriggers Position : Max
Outriggers Position : Other than Max
1,870 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)
1,870 lb Searcher Hook Offset Position
SH2 (Outriggers Position : Max)
1,870 lb Searcher Hook Offset Position
SH3 (Outriggers Position : Max)
Specifications
| Crane Capacity | 6,210lb x 4.5' |
|---|---|
| Max. Working Radius | 26.9' x 330lb |
| Max.Lifting Height | 28.54' |
| Max. Reach Below Ground | -33.0’ (4 parts of line) |
| Max. Reach Below Ground (Aux Winch) | -328' (single part of line) |
| Outrigger Max.Extended Width | （Lateral）15’8” x （Front）15’6” x （Rear）13’1” |
| Travel Speed | 0-1.25mph |
| Travel Ground Pressure (MC285CWM-3) | 7.25PSI (50.0kpa) |
| Travel Ground Pressure (*MC285CGRM-2) | 6.93PSI (47.8kpa) |
| Travel Ground Pressure (MC285CWME-3) | 7.88PSI (54.3kpa) |
| Engine | IHI SHIBAURA E672L-F/ Diesel |
| Engine Rated Output | 8.57hp (6.4kw)/2,600rpm |
| Engine (*MC285CGRM-2) | Briggs & Stratton 3564 / Petrol |
| Engine Rated Output (*MC285CGRM-2) | 14.48hp (10.8kw)/2,600rpm |
| Electric Motor | 5.5kw, 4P 208-230V |
| Dimensions (MC285CWM-3) | 9’2” (L) x 2'6" (W) x 4'10" (H) |
| Dimensions (MC285CWME-3) | 10’9” (L) x 2'6" (W) x 4'10" (H) |
| Machine Weight (MC285CWM-3) | 4,388lb |
| Machine Weight (*MC285CGRM-2) | 4,190lb |
| Machine Weight (MC285CWME-3) | 4,762lb |
*Gasoline engine model is only available as MC285CGRM-2.
Dimensions
