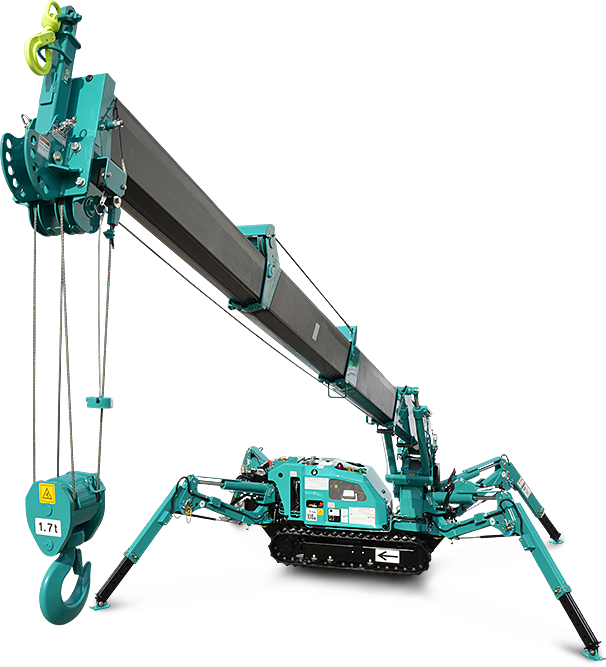

SPIDER CRANE

MC174C

Crane capacity

1.72t x 1.0m

(3,790 lb x 3.0 ft)

Max. lifting height (on the ground)

5.5m

(18.0 ft)

Max. working radius

5.17m x 0.22t

(16.9 ft x 480 lb)

Max. lifting height (underground)

-7.0m (4 falls)

(-23.0 ft)

Working Range Chart

Outriggers Position : Max

Outriggers Position : Other than Max

300kg Searcher Hook Offset Angle : 40˚
(Outriggers Position : Max)

Specifications

Crane Capacity	1.72t x 1.0m
Max. Working Radius	5.17m x 0.22t
Max. Lifting Height	5.5m
Max. Reach Below Ground	-7.0m (4 falls)
Outrigger Max. Extended Width	(Lateral) 3,335mm x (Front) 3,060mm x (Rear) 2,885mm
Travel Speed	0-3.3km/h
Travel Ground Pressure	33.7kpa [0.34kgf/cm²]
Engine	MITSUBISHI GB400LE / Petrol
Engine Rated Output	6.6kw /1,800rpm
Dimensions	2,000mm (L) x 590mm (W) x 1,300mm (H)
Machine Weight	1,290kg

Dimensions
