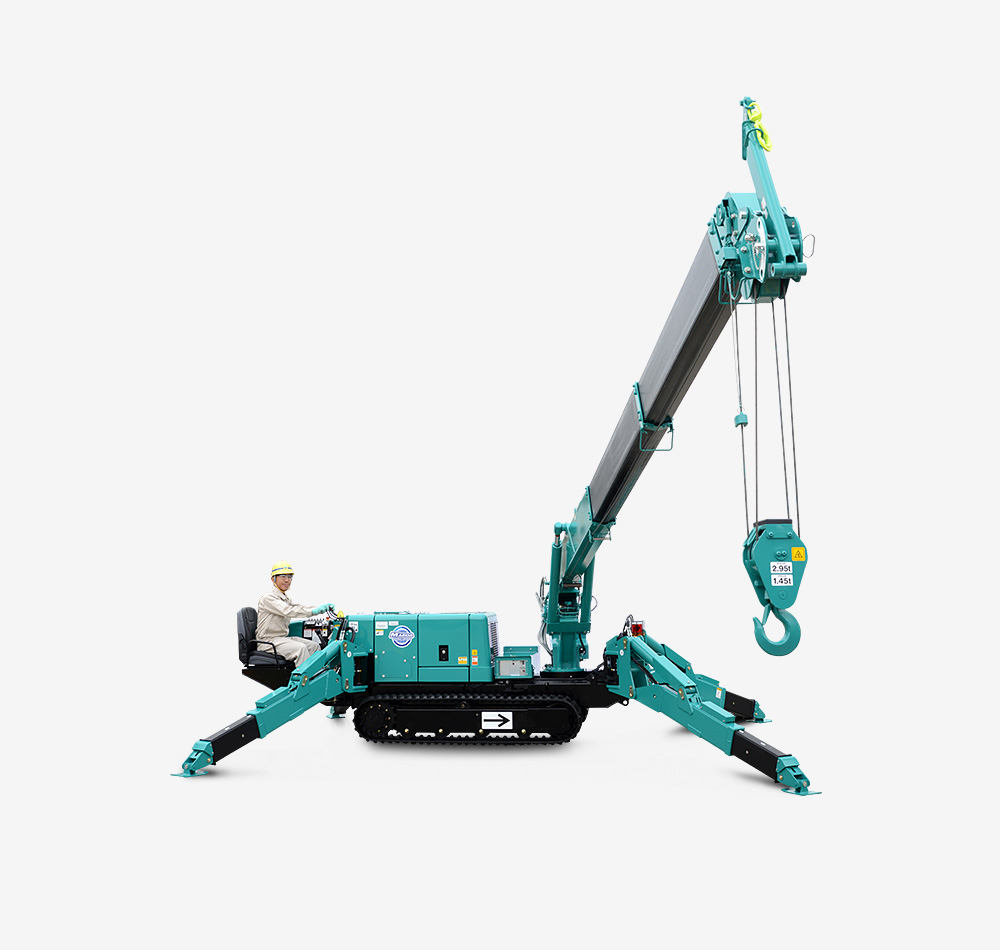

SPIDER CRANE

MC305C-2

Crane capacity

2.98t x 2.5m

(6,560 lb x 8.0 ft)

Max. lifting height (on the ground)

12.52m

(41.0 ft)

Max. working radius

12.16m x 0.26t

(39.8 ft x 570 lb)

Max. lifting height (underground)

-16.09m (4 falls)

(-53.0 ft)

STYLE

TECHNICAL DATA

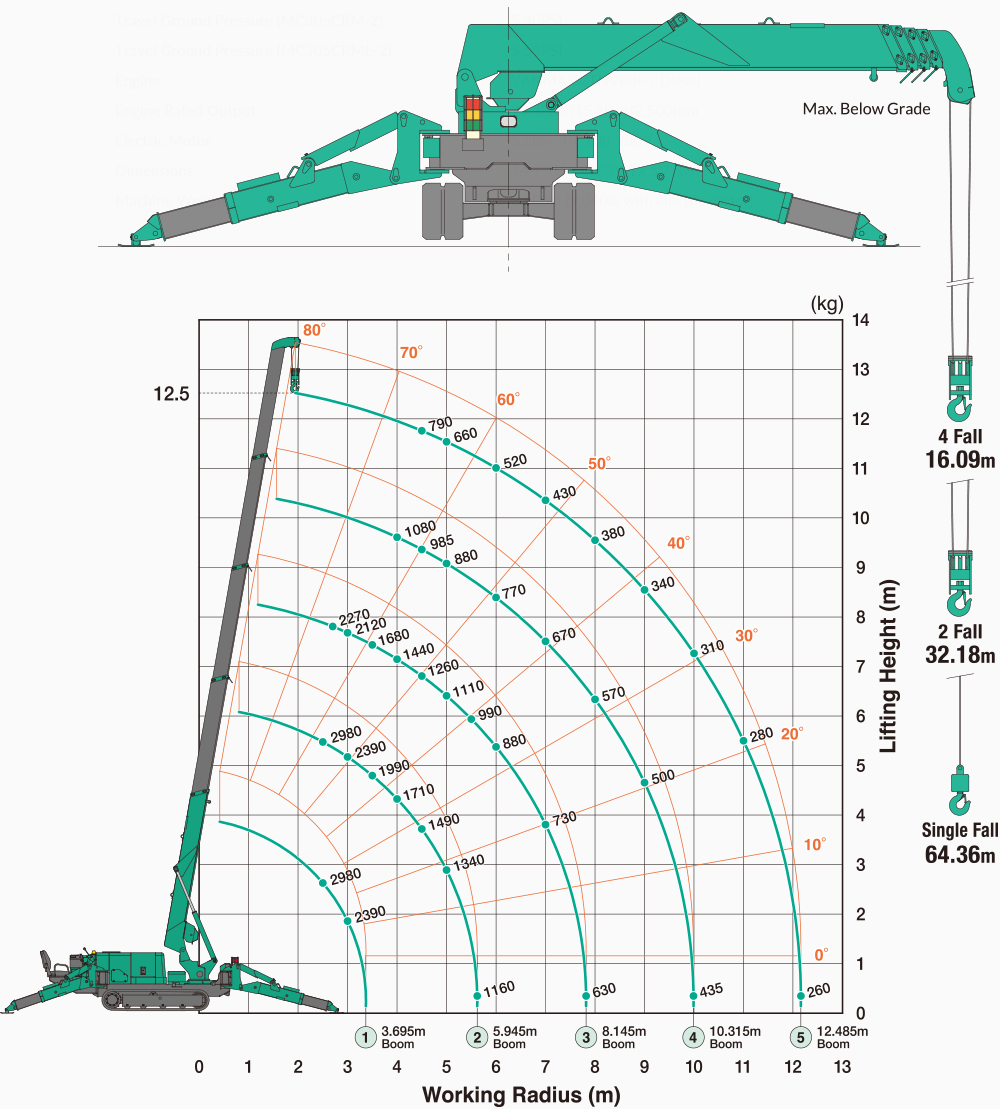

Working Range Chart

Outriggers Position : Max

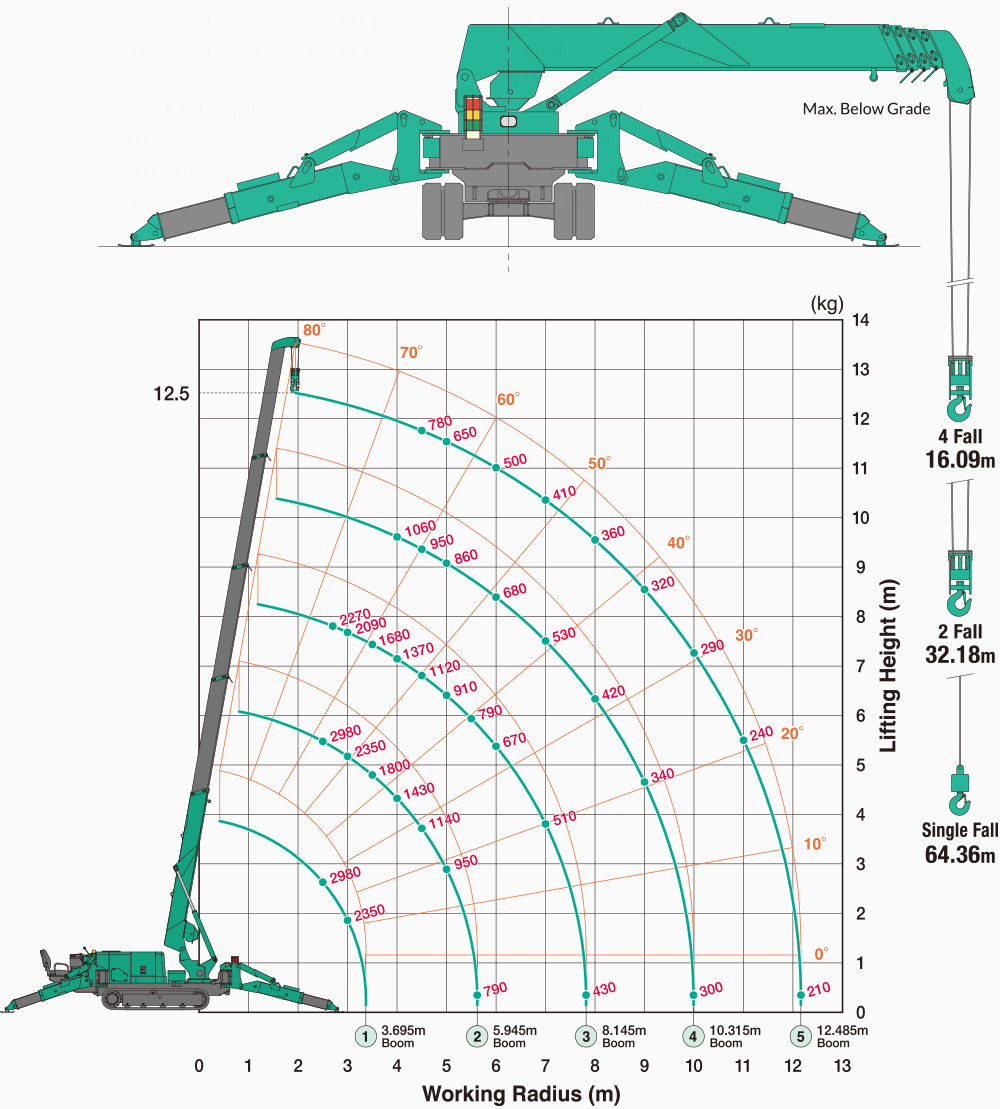

Outriggers Position : Mid

Outriggers Position : Min

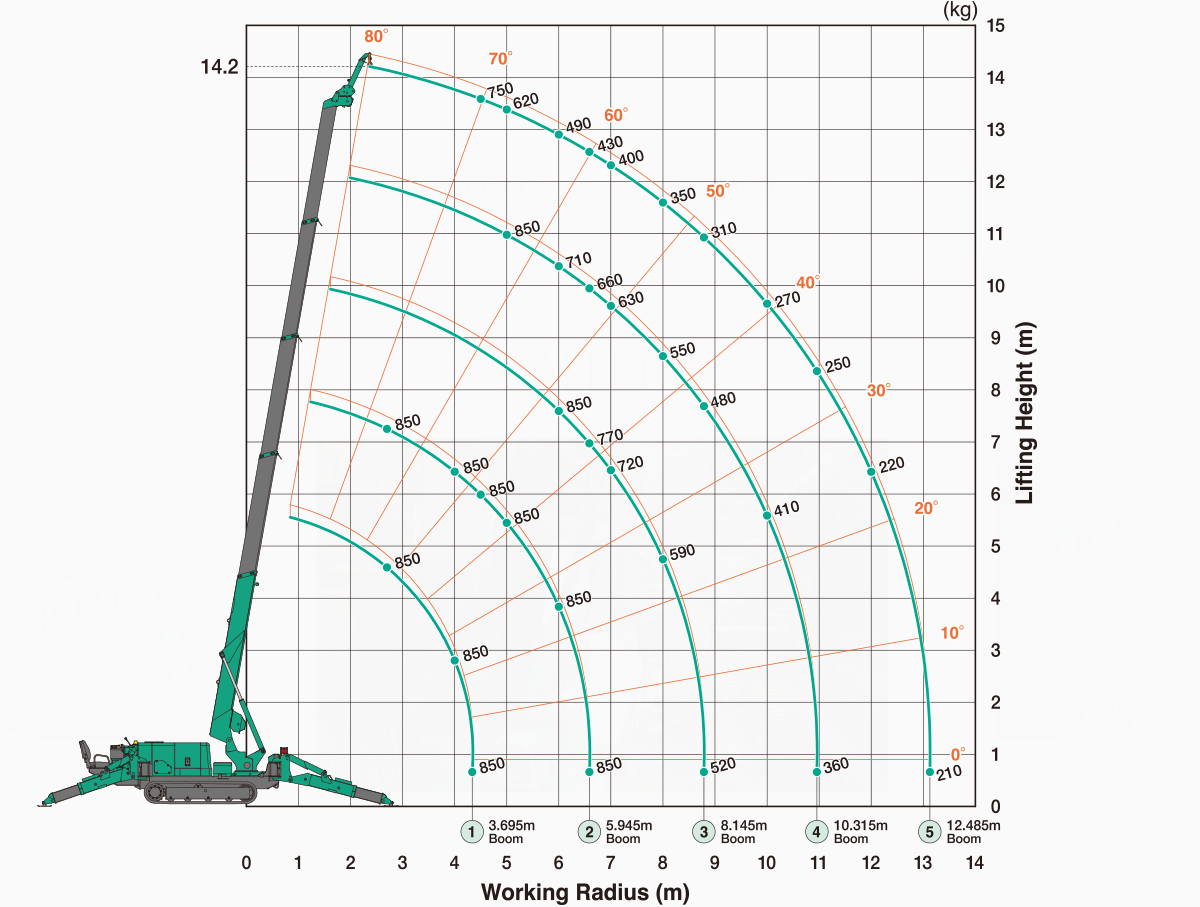

850kg Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

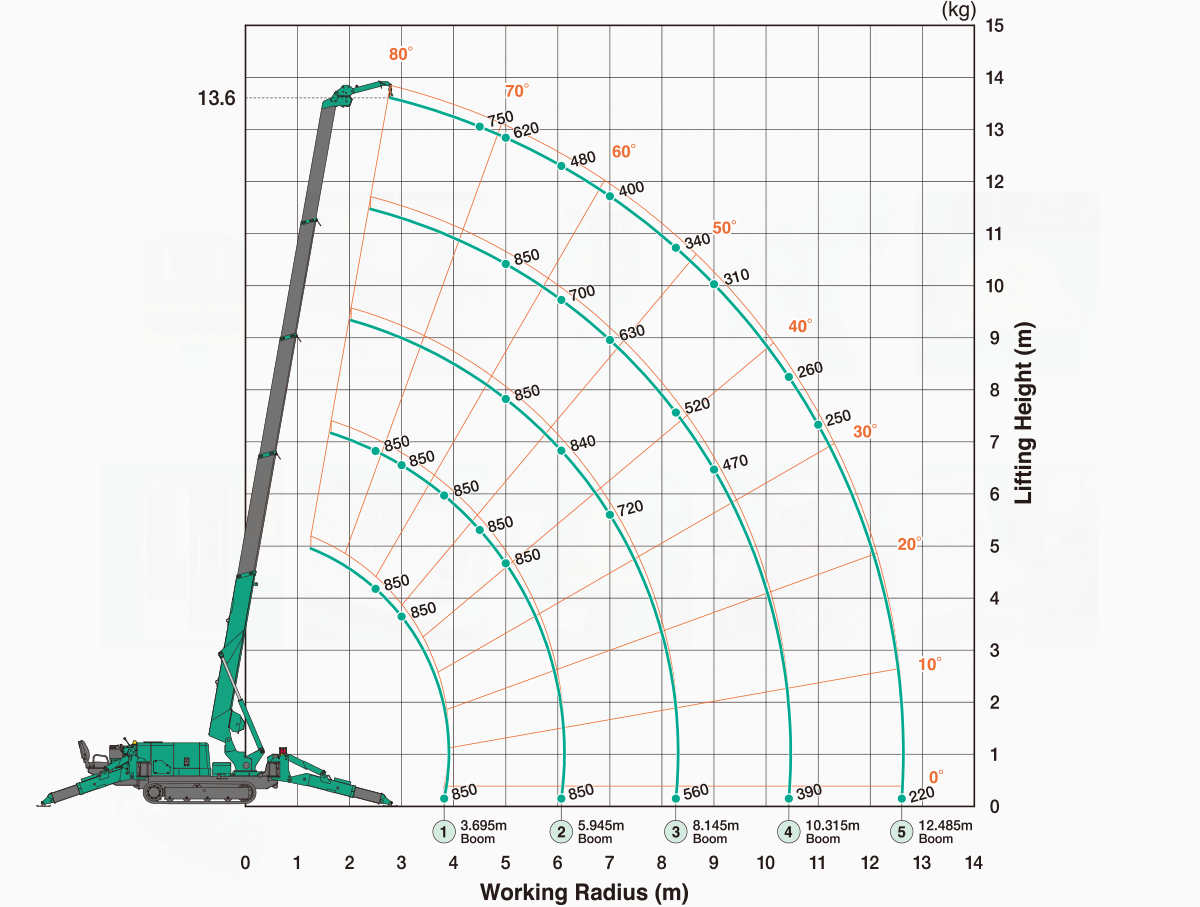

850kg Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

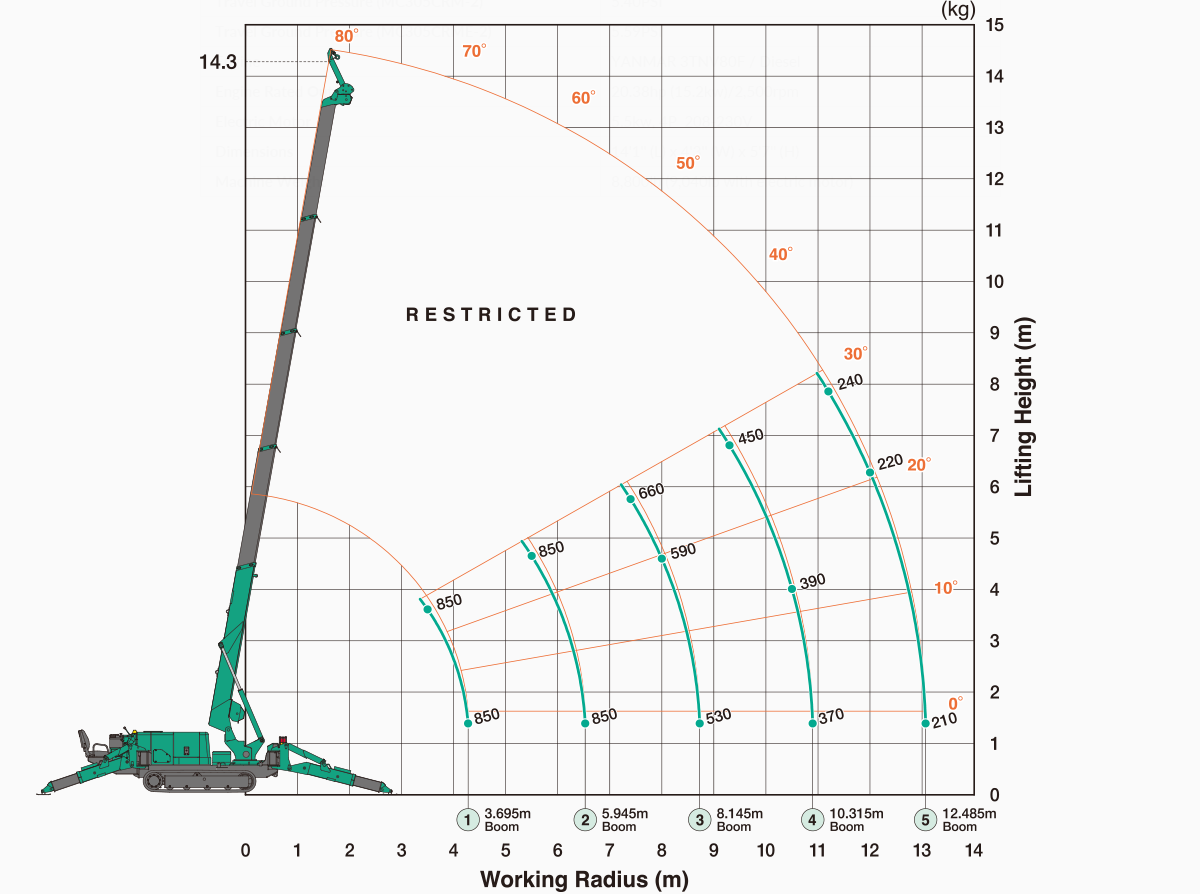

850kg Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

Specifications

Crane Capacity 2.98t x 2.5m
Max. Working Radius 12.16m x 0.26t
Max. Lifting Height 12.52m
Max. Reach Below Ground -16.09m (4 falls)
Outrigger Max. Extended Width (Lateral) 4,888mm x (Front) 4,504mm x (Rear) 4,396mm
Travel Speed 0-2.8km/h
Travel Ground Pressure (MC305CRM-2) 36.3kpa [0.37kgf/cm2]
Travel Ground Pressure (MC305CRME-2) 37.3kpa [0.38kgf/cm2]
Engine YANMAR 3TNV76 / Diesel
Engine Rated Output 15.2kw/2,500rpm
Electric Motor 5.5kw, 4P 380V
Dimensions 4,285mm (L) x 1,280mm (W) x 1,695mm (H)
Machine Weight 3,900kg (4,080kg with electric motor)

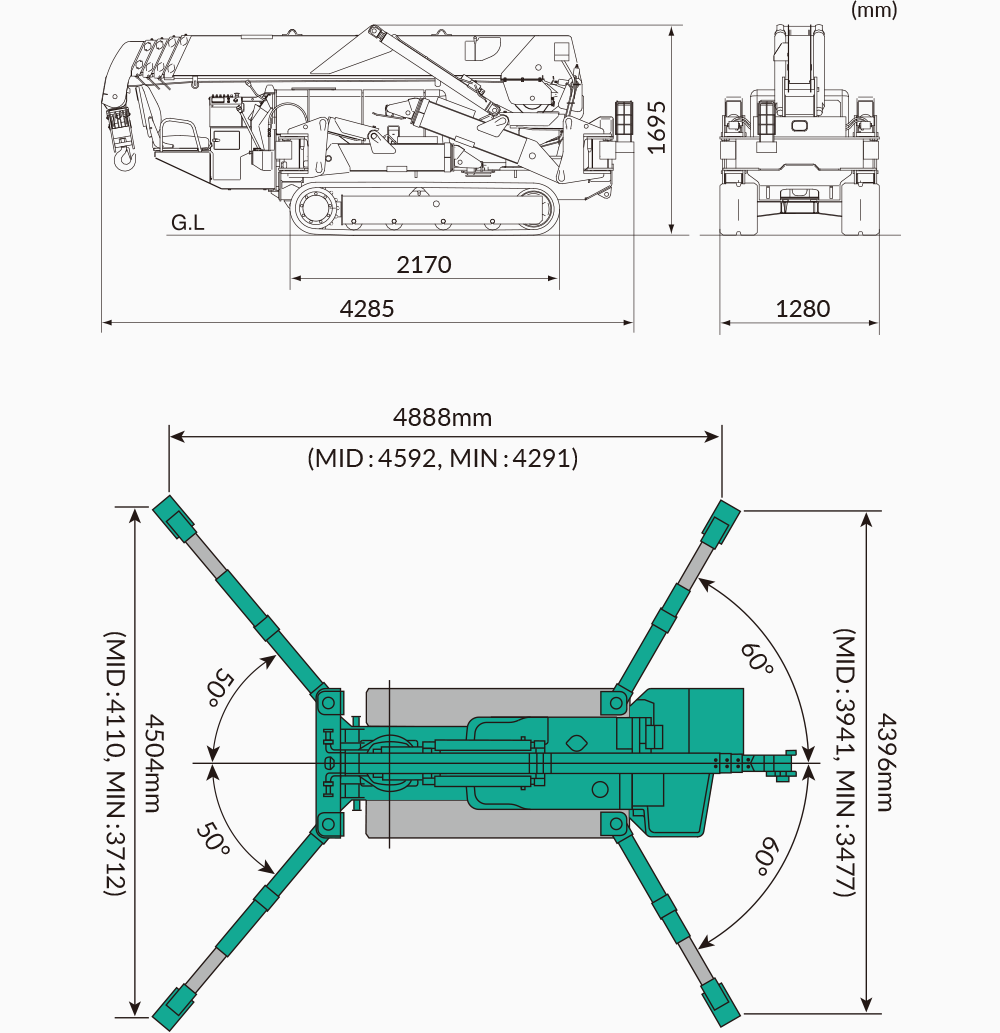

Dimensions

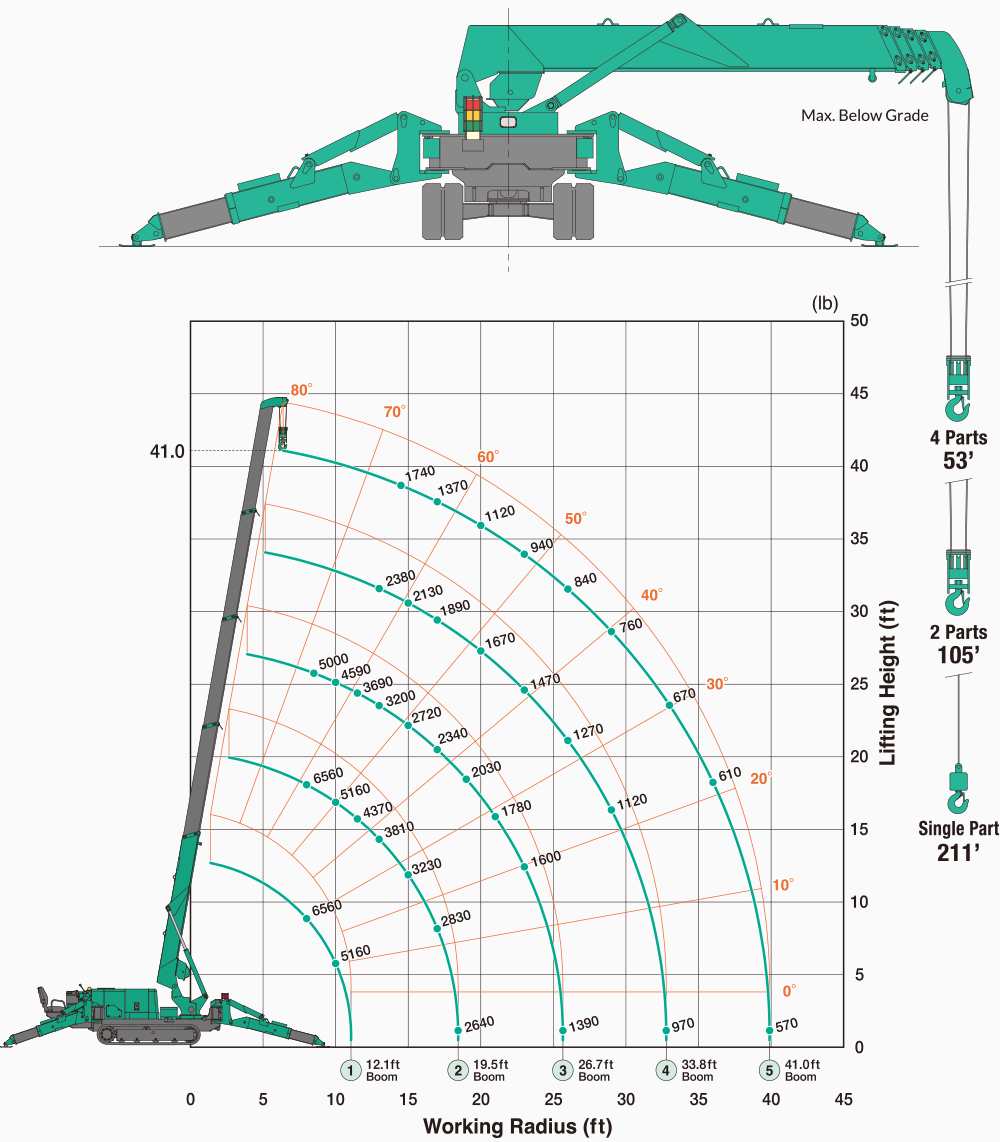

Working Range Chart

Outriggers Position : Max

Outriggers Position : Mid

Outriggers Position : Min

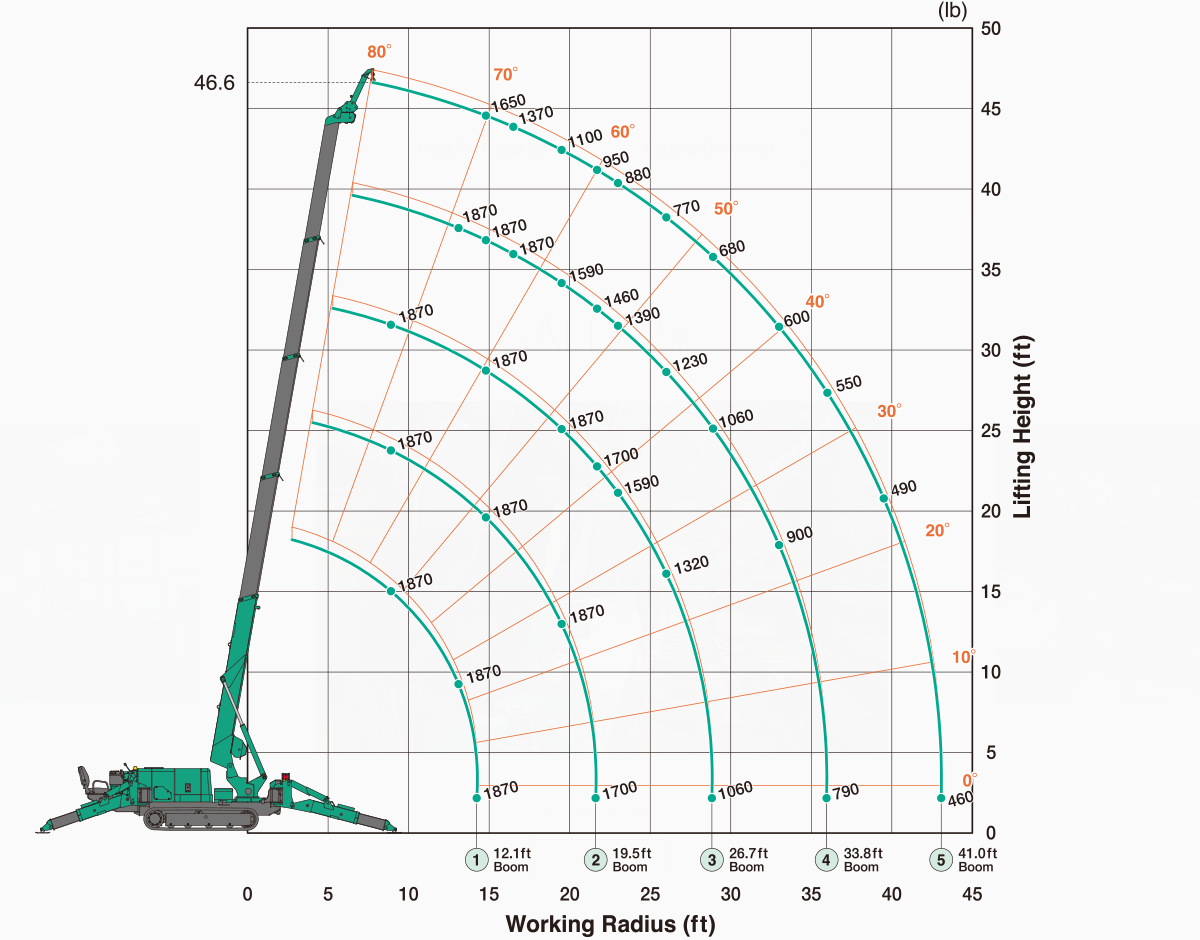

1,870 lb Searcher Hook Offset Position
SH1 (Outriggers Position : Max)

1,870 lb Searcher Hook Offset Position
SH2 (Outriggers Position : Max)

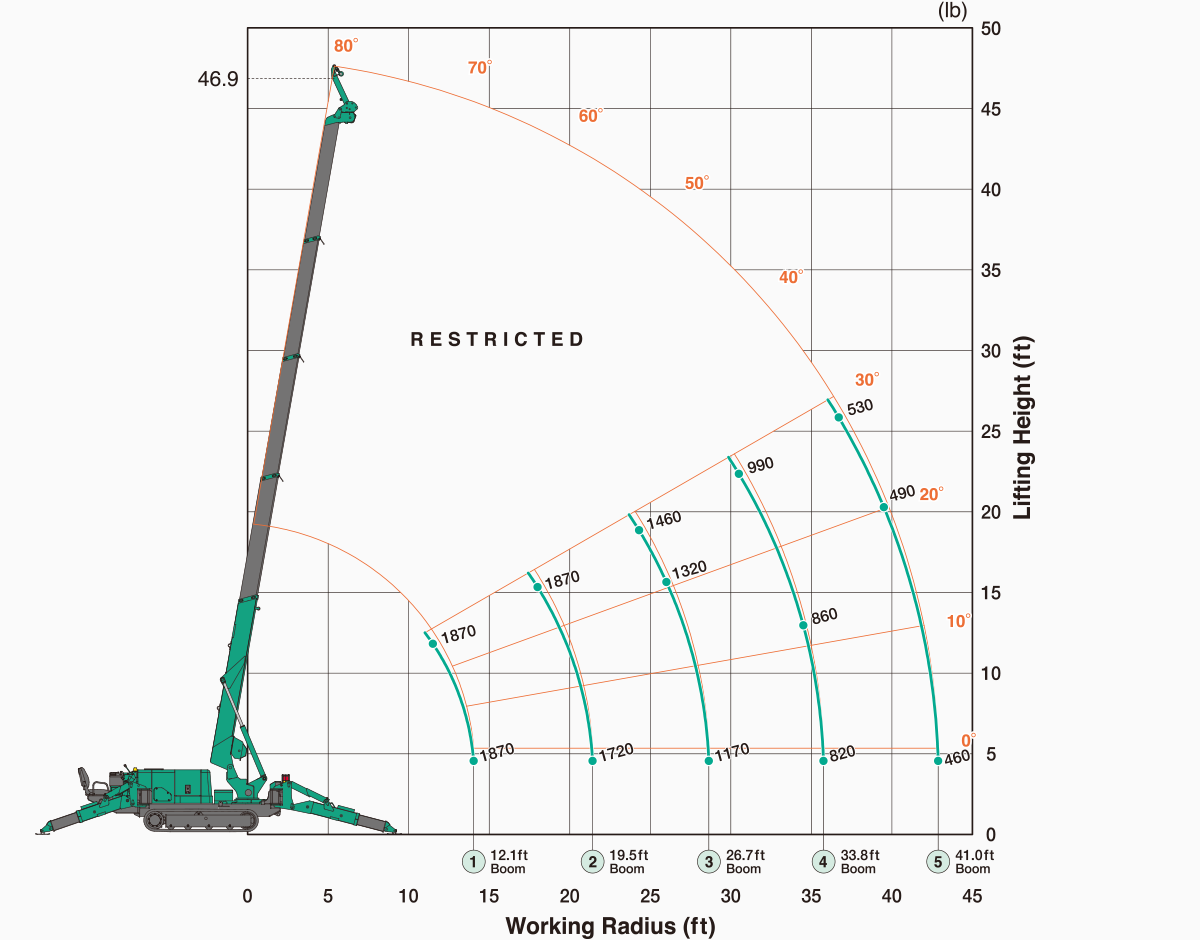

1,870 lb Searcher Hook Offset Position
SH3 (Outriggers Position : Max)

Specifications

Crane Capacity 6,560lb x 8.0'
Max. Working Radius 39.8' x 570lb
Max. Lifting Height 41.0'
Max. Reach Below Ground -52.79' (4 parts of line)
Outrigger Max. Extended Width (Lateral) 17'0" x (Front) 15'10" x (Rear) 15'6"
Travel Speed 0-1.7mph
Travel Ground Pressure (MC305CRM-2) 5.40PSI
Travel Ground Pressure (MC305CRME-2) 5.59PSI
Engine YANMAR 3TNV80F / Diesel
Engine Rated Output 20.38hp (15.2kw)/2,500rpm
Electric Motor 5.5kw, 4P 208-230V
Dimensions 14'1" (L) x 4'3" (W) x 5'7" (H)
Machine Weight 8,800lb (9,040lb with electric motor)

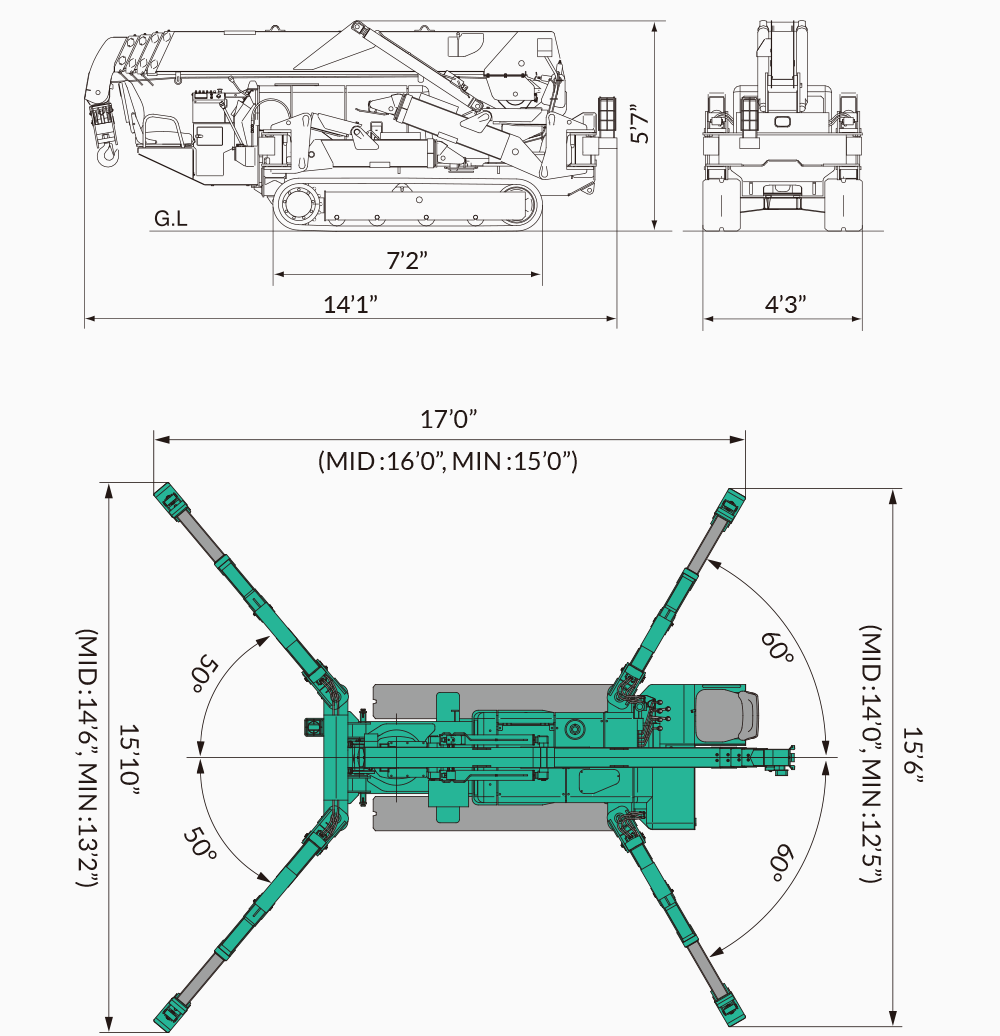

Dimensions

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

  • Remote Control with Digital Display
  • Crane 2 Speed Function
    Travel 2 Speed Function
  • 4 fall / 2 fall Hook Block
  • Automatic Hook Stowage System
  • Level
  • Diagnostic Display Panel
  • Programmable Moment Limiter
  • Crane / OR Interlock (OR Set Lamp)
  • Working Status Lamp
  • Data Logger
  • Tilt Alarm

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

  • Electric Motor Power (Inverter System)
  • Single Fall Hook
  • Searcher Hook
  • Non-Marking White Rubber Tracks
  • Cold Weather Package
  • Custom Paint Colours
  • Machine Cover
