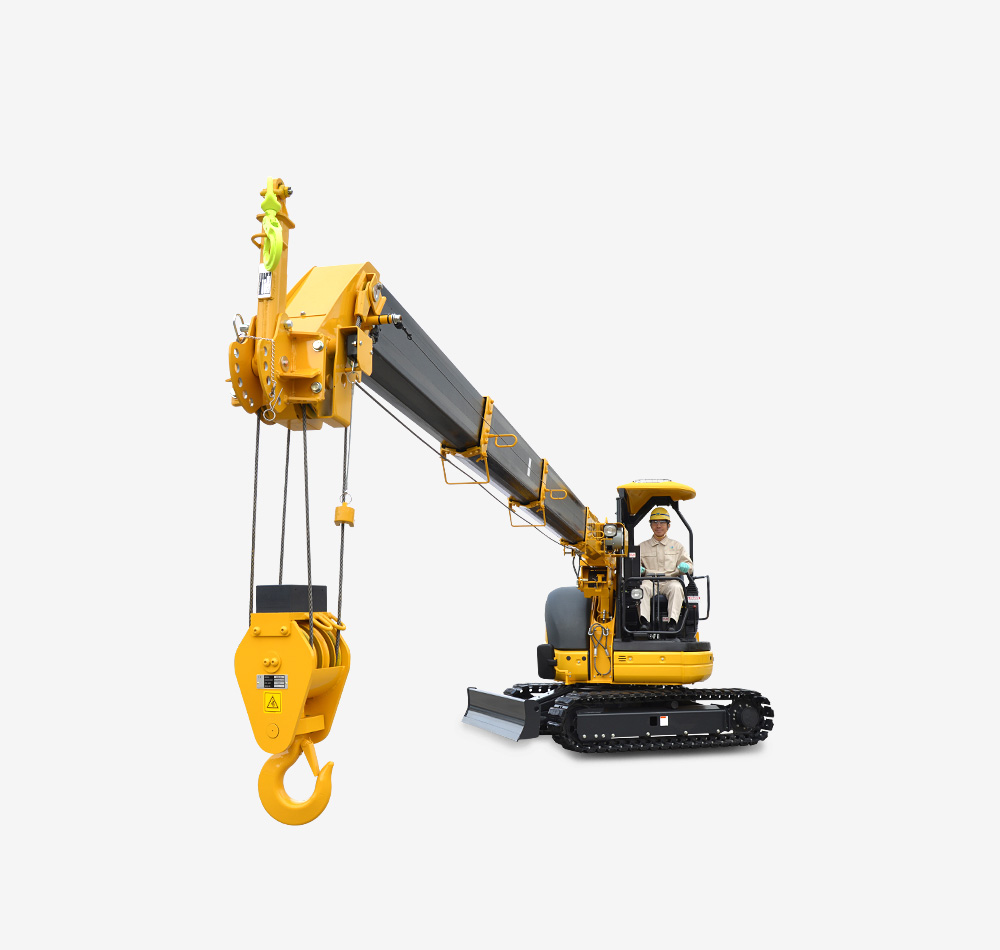

CRAWLER CRANE

LC383M-5

Crane capacity

2.93t x 1.5m

(6,450 lb x 4.5 ft)

Max. lifting height (on the ground)

9.3m x 1.19t

(30.5 ft x 2,620 lb)

Max. working radius

8.38m x 0.20t

(27.5 ft x 440 lb)

Max. lifting height (underground)

-15.5m (4 falls)

(-50.9 ft)

Pick & Carry Capacity

1,465kg

(3,230 lb)

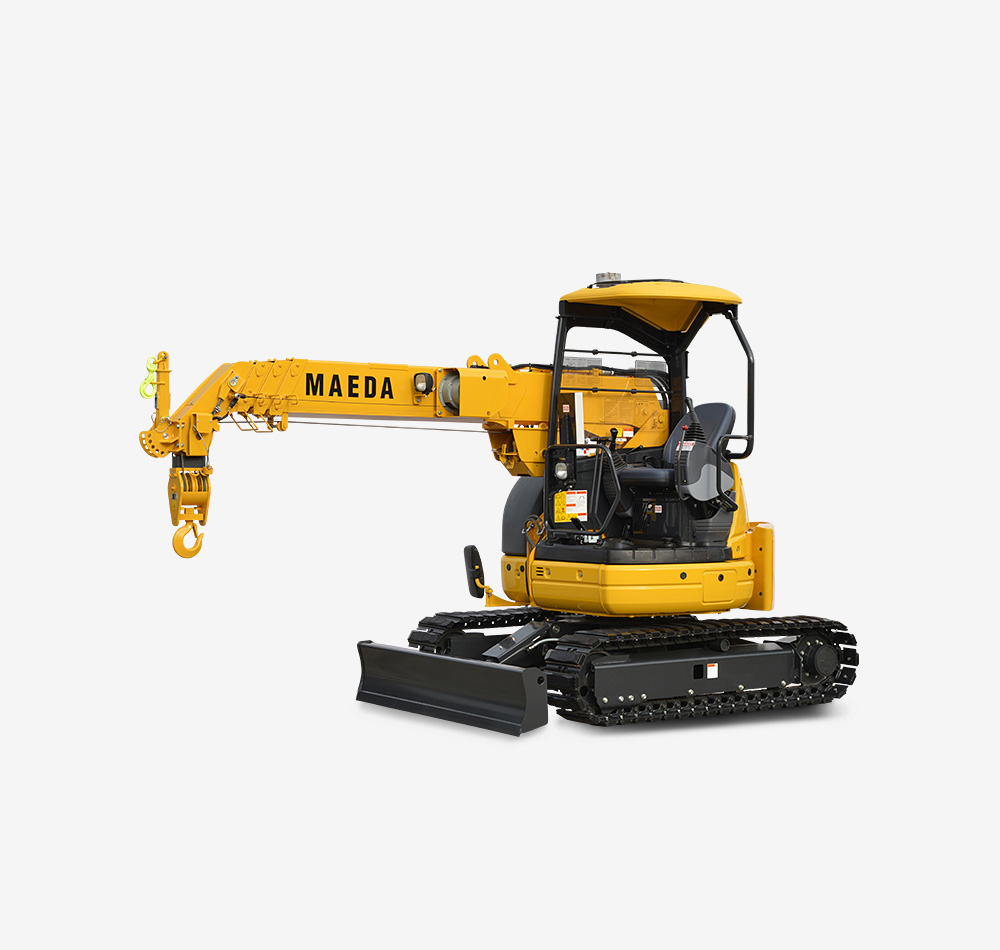

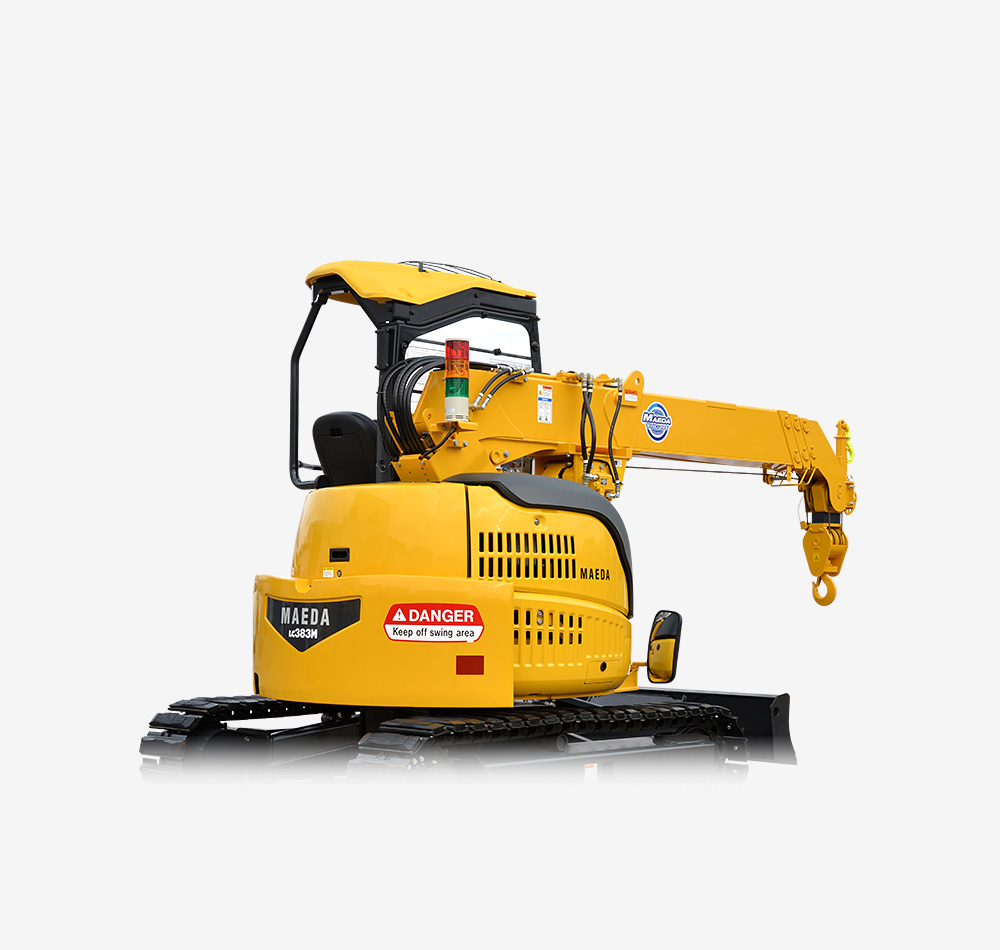

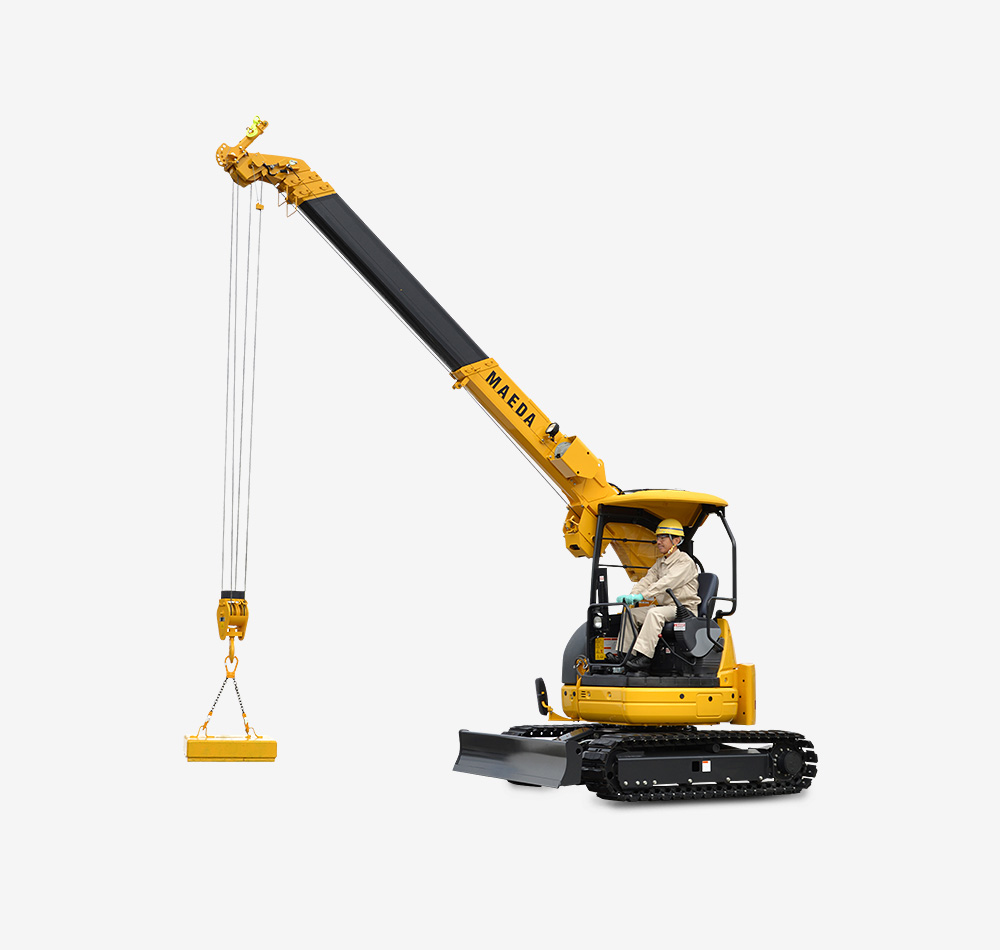

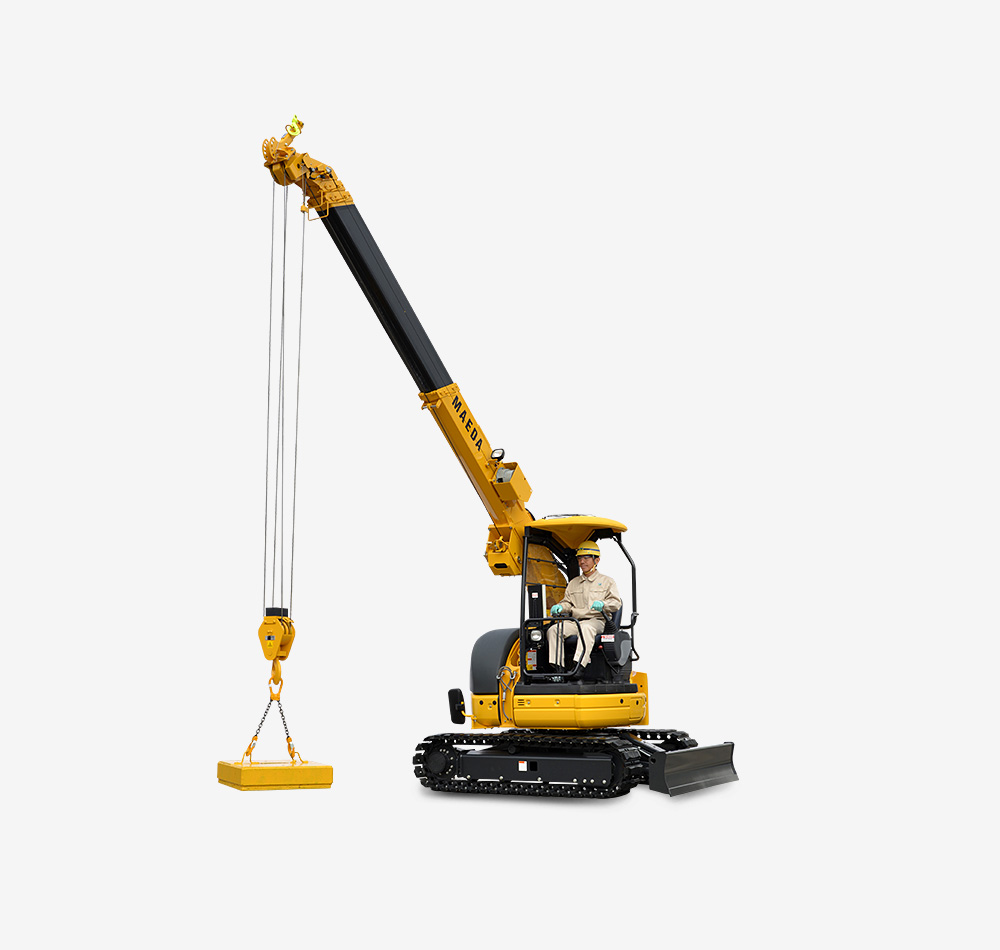

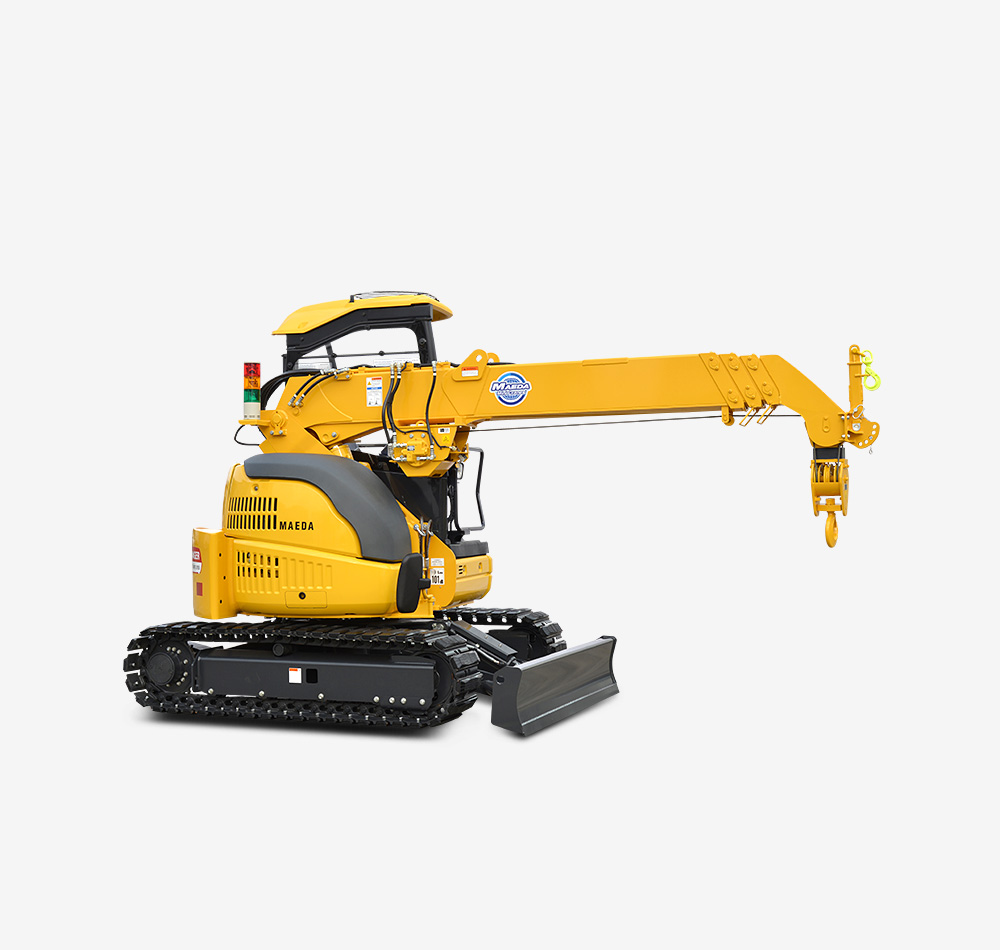

STYLE

TECHNICAL DATA

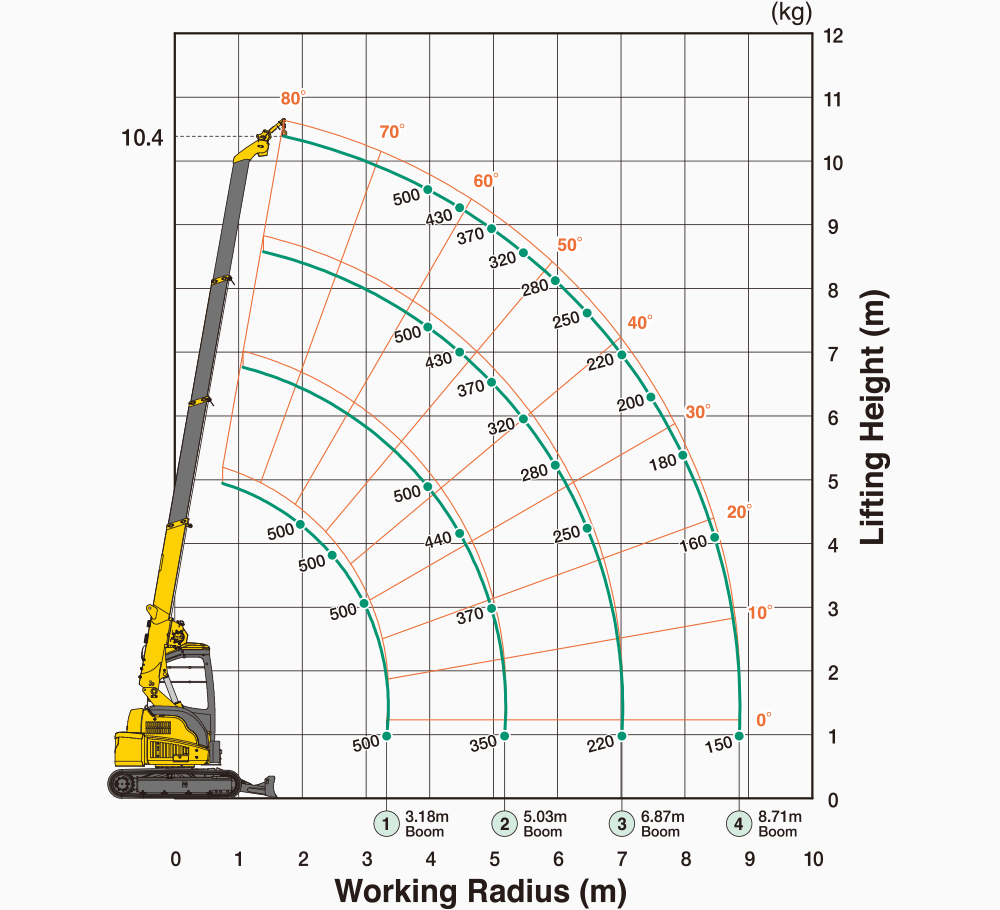

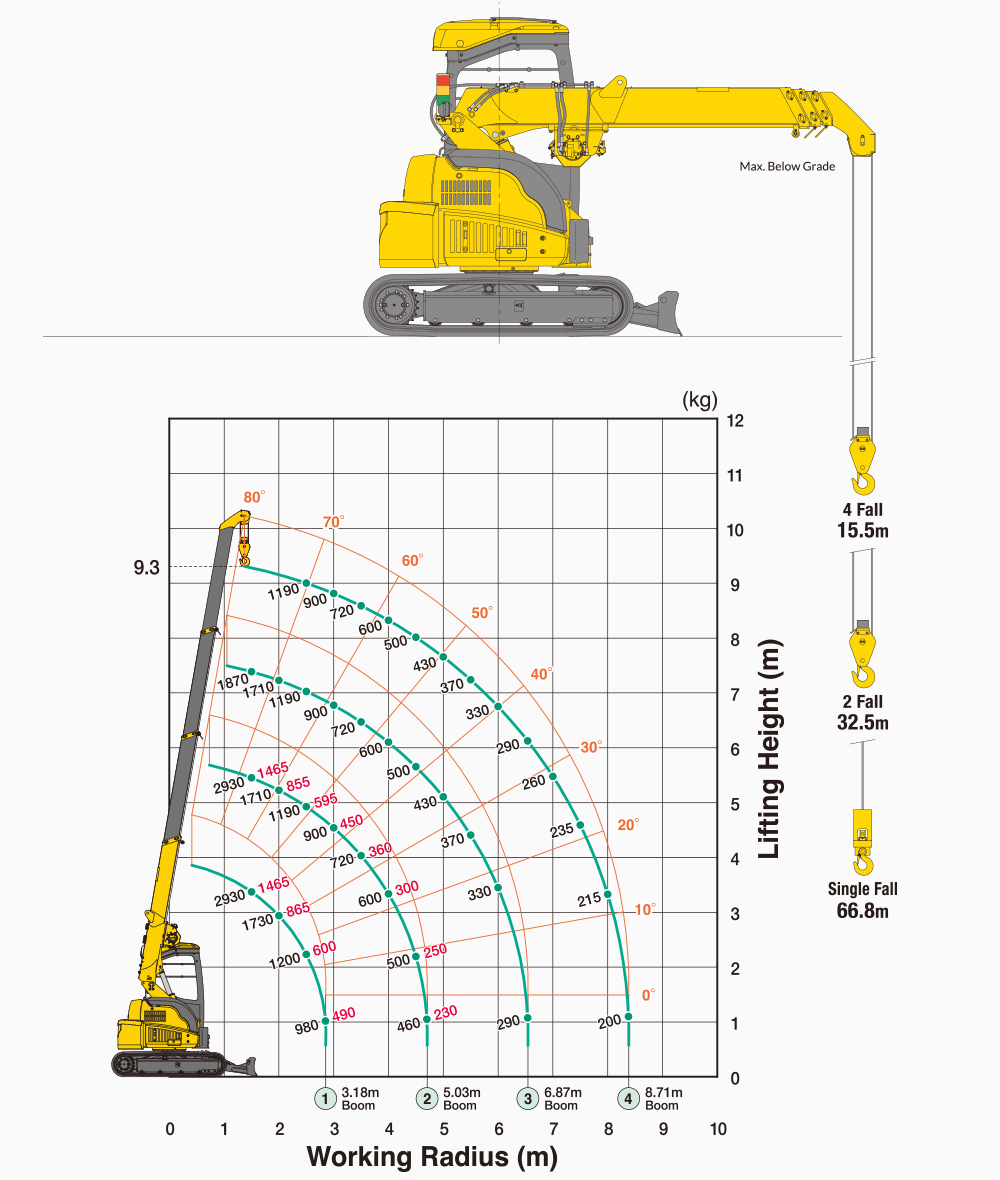

Working Range Chart

Searcher Hook
(Offset Angle : 40°)

Specifications

Crane Capacity 2.93t x 1.5m
Max. Working Radius 8.38m x 0.20t
Max. Lifting Height 9.3m x 1.19t
Max. Reach Below Ground -15.5m (4 falls)
Pick & Carry Capacity 1,465kg
Travel Speed 0-5.0km/h
Travel Ground Pressure 43.5kpa [0.44kgf/cm2]
Engine YANMAR 3TNV88 / Diesel
Engine Rated Output 21.5kw/2,400rpm
Dimensions 4,020mm (L) x 1,740mm (W) x 2,495mm (H)
Tail Swing 980mm
Machine Weight 4,400kg (Rubber Pads : +90kg)

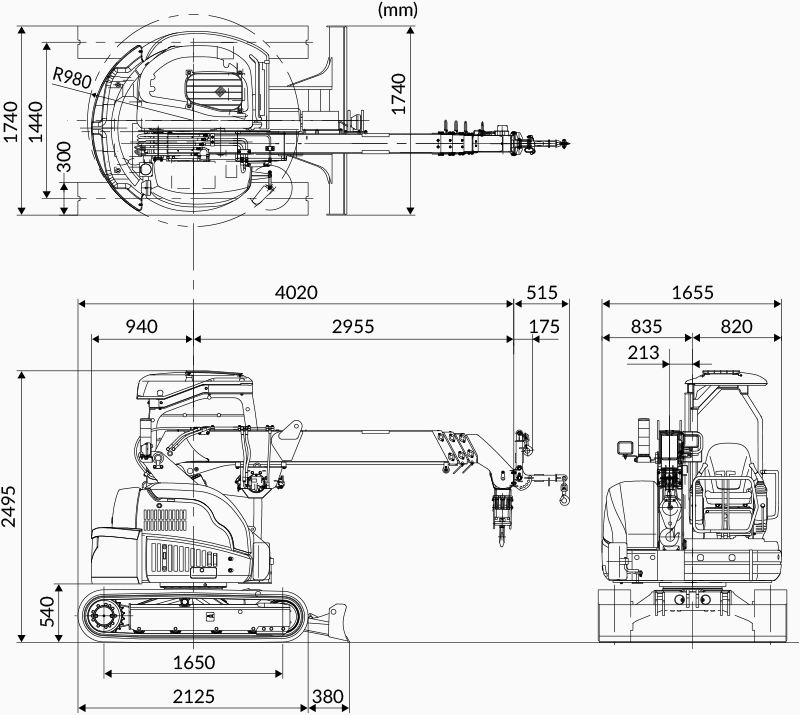

Dimensions

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

  • Travel 2 Speed Functions
  • 4 fall / 2 fall Hook Block
  • Automatic Hook Stowage System
  • Level
  • Programmable Moment Limiter / Diagnostic Display
  • Tilt Alarm
  • Working Status Lamp
  • Data Logger
  • Pick & Carry

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

  • Single Fall Hook
  • Searcher Hook
  • Black Rubber Pads
  • White Rubber Pads
  • Custom Paint Colours
